Daspass TIH 30 Bobbin Titanium Heater
Daspass TIH 30 Bobbin Titanium Heater
| Brand: Daspass |
Daspass
Daspass began its operations in the year 1968, as a manufacturer, supplier and exporter of a diverse and superior range of Heating Elements. The offered range is comprised of Industrial Heating Elements, HVAC Heaters and Flame Proof Heaters, which are widely acclaimed and asked for in the market. We engage in the utilization of high grade raw materials and modern machines, in compliance with the set industry norms and guidelines, for manufacturing this range of products. Owing to this, the offered range is known for its impeccable service life, precision and performance. In addition, the range is marked at the most reasonable rate possible.

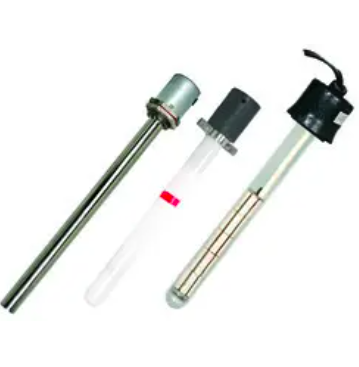

These heaters are used for Light Oils, Chemical and Water Immersion applications. These are rewireable type elements and inserted in the tubeing of Lead / STS (Silica) / SSL (Stainless Steel) / TIH (Titanium) Etc. Its terminals are covered with cap fitted with Flange, for installation. They must be dipped inside the chemical upto red mark which indicates hot length. The porcelain elements are inserted in the tube of 1” / 1-1/2” dia and terminal head on upper side sealed to prevent from moisture and fumes.
| Model | TIH 30 |
| Power | 3.0 kW |
| Voltage | 230 Volts / AC / 50 Hz / Single Phase |
| Total Length | 30 in. |
| Effective Length | 24 in. |
