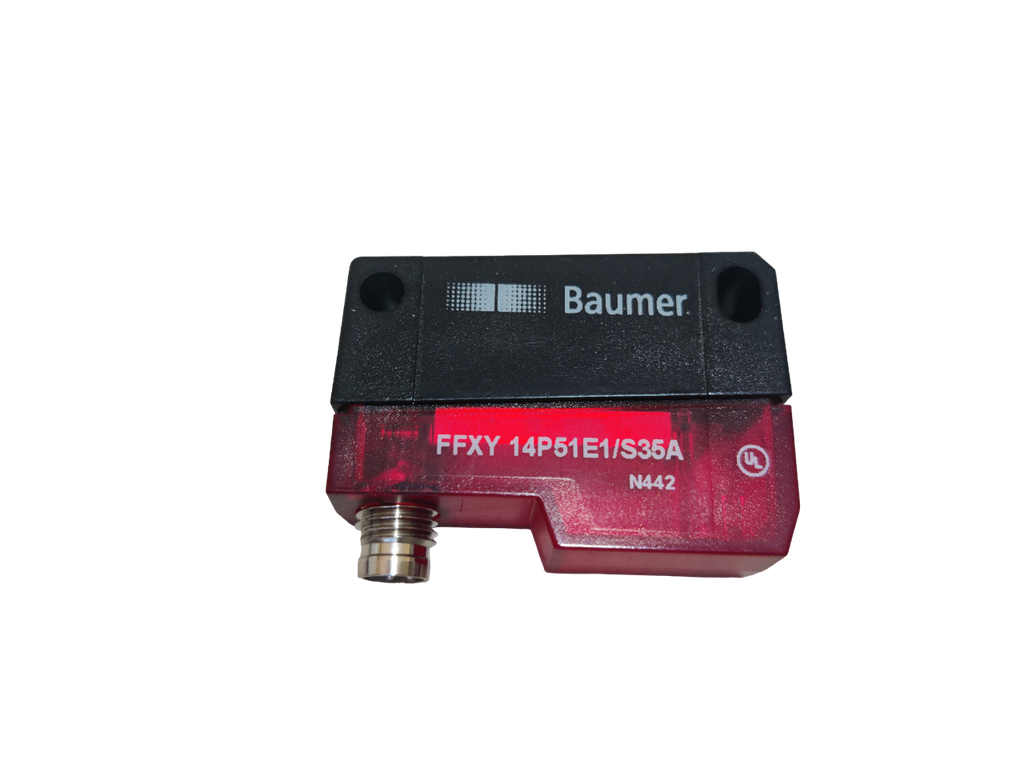

Baumer Through Beam Sensor FFXY 14P51E1/S35A
Baumer Through Beam Sensor FFXY 14P51E1/S35A
| Brand: Baumer |
Baumer
An international family-owned business with a passion for sensor technology, encoders, measuring instruments and components for automated image processing
Introducing the Baumer Through Beam Sensor FFXY 14P51E1/S35A - a highly reliable and accurate sensor designed to cater to your sensing needs. This sensor is an excellent choice for detecting objects in industrial applications, providing superior accuracy and precision.Built with a rugged and durable housing, the Baumer Through Beam Sensor FFXY 14P51E1/S35A is capable of withstanding harsh environmental conditions, including dust and water. It features a high detection range of up to 100 meters, making it ideal for use in large-scale manufacturing facilities and warehouses.
The Baumer Through Beam Sensor FFXY 14P51E1/S35A is easy to install, and its simple operation makes it an ideal choice for various sensing applications. Its reliable performance and stable output provide accurate and timely information to the control system, improving operational efficiency and reducing downtime.The sensor is equipped with advanced technology that ensures precise and consistent detection of objects, even in challenging environments. With its robust design and exceptional performance, the Baumer Through Beam Sensor FFXY 14P51E1/S35A is the perfect solution for your industrial sensing needs.
| General data | |
| Type | Intensity difference |
| Light source | Pulsed red LED |
| Sensing distance Tw | 5 … 600 mm |
| Alignment / soiled lens indicator | Flashing light indicator |
| Light indicator | LED yellow |
| Sensitivity adjustment | Potentiometer, 270° |
| Wave length | 660 nm |
| Suppression of reciprocal influence | Yes |
| Electrical data | |
| Response time / release time | < 1 ms |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 25 mA |
| Current consumption typ. | 20 mA |
| Voltage drop Vd | < 1.8 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP |
| Output current | < 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Mechanical data | |
| Width / diameter | 14.8 mm |
| Height / length | 43 mm |
| Depth | 31 mm |
| Type | Rectangular |
