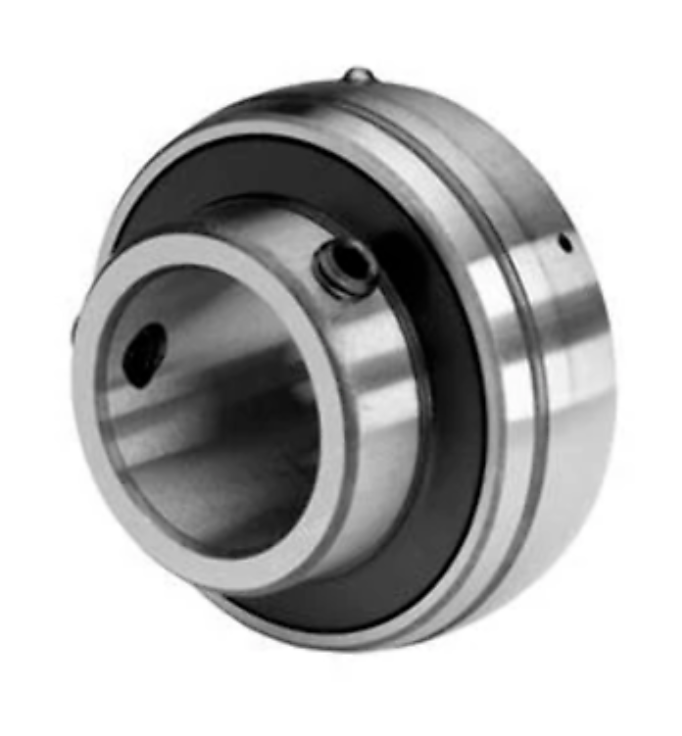

FAG UC213 Radial Insert Ball Bearing
FAG UC213 Radial Insert Ball Bearing
| Brand: FAG |
FAG
Schaeffler Technologies AG & Co. KG, also known as Schaeffler Group, is a German manufacturer of rolling element bearings for automotive, aerospace and industrial uses. It was founded in 1946 by brothers Dr. Wilhelm and Dr.-Ing. E. h. Georg Schaeffler.
FAG radial insert ball bearings with a spherical outer ring are based on single row deep groove ball bearings 62 and are designed in accordance with JIS B 1558. The Black Series radial insert ball bearings are available with two location methods and one type of seal. They can be re-lubricated and are particularly easy to install. The radial insert ball bearings are pre-greased and can be re-lubricated by means of two lubrication holes in the outer ring.
The bearings have plastic cages and are sealed on both sides by single piece seals RSR with a vulcanised seal lip and an outer flinger shield.
The honed raceways of the bearing rings, in conjunction with the high ball grade, ensure quiet running and a reduced frictional torque.
The inner and outer rings as well as the flinger shields are provided with the black Durotect BS coating in order to offer basic protection against corrosion.
| Brand / Model | FAG UC213 |
| Outer Dia | 120.00 mm |
| Inner Dia | 65.00 mm |
| Bore Dia | 65.00 mm |
| Weight | 1.85 Kg |
