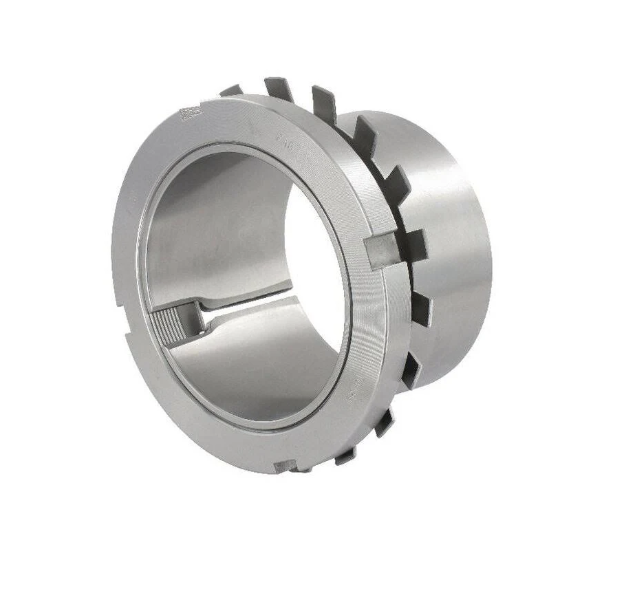

FAG H3128 Adapter Sleeve
FAG H3128 Adapter Sleeve
| Brand: FAG |
FAG
Schaeffler Technologies AG & Co. KG, also known as Schaeffler Group, is a German manufacturer of rolling element bearings for automotive, aerospace and industrial uses. It was founded in 1946 by brothers Dr. Wilhelm and Dr.-Ing. E. h. Georg Schaeffler.
FAG Adapter Sleevesare the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain or stepped shafts. They are easy to install and require no additional location on the shaft. When adapter sleeves are used on plain shafts, the bearing can be located at any position on the shaft. When used on stepped shafts together with an L-shaped spacer ring, bearings can be accurately positioned axially thereby facilitating bearing mounting and dismounting.
| Inner Diameter (d): | 125 mm |
| Bore | 121 mm |
| Outer Diameter (D): | 192 mm |
| Product Type: | Adapter Sleeve |
| Sleeve Length | 97 mm |
| Weight: | 4.32 kg |
