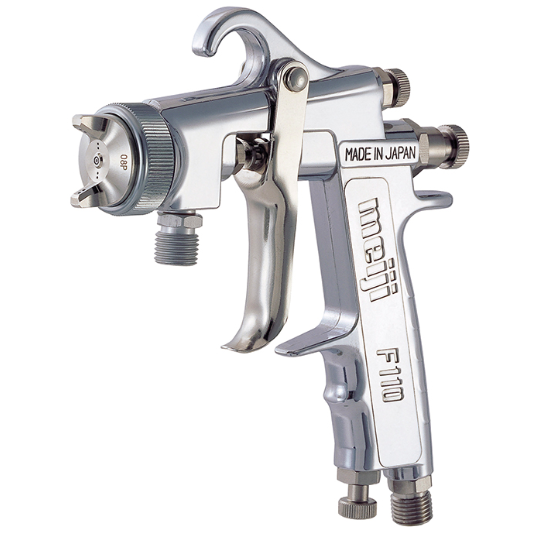

Meiji F110-G13ST Gravity Type Hand Spray Gun
Meiji F110-G13ST Gravity Type Hand Spray Gun
| Brand: Meiji Air Conpressor Mgf Co Ltd |
Meiji Air Conpressor Mgf Co Ltd
MEIJI have been developing air compressors, painting apparatus, painting equipment etc.
using unlimited energy resource of “air” for more almost 100 years since establishment in 1924
pursuing the possibility of making full use of the unlimited resource and the possibility of energy cost savings.
Suction Type Hand Spray Gun
Suction & gravity type are interchangeable for pressure type & vice versa.
Features
1. Stable air flow vastly realises the prevention of air pressure lost.
2. Reduction of paint consumption, and small air consumption in saving energy.
3. Water based paint proof in the liquid connection part.
●Realising high quality paint film by optimum spraying paint volume.
●Stable air flow vastly realises the prevention of air pressure lost.
●Reduction of paint consumption, and small air consumption in saving energy.
●Optimum air flow brings the reduction of paint adhesion to air cap set.
●Easy handling with optimum weight balance and light weight.
●Reduction of trigger load, and improvement of usability with lower resistance packing.
●Waterborne compatibility.
●Improvement of parts durability.
●Addition of Semi-tulip pattern.
●Each nozzle bore size has its own air cap set.
●Air cap sets for suction, gravity, and pressure type are interchangeable in the same fluid nozzle bore size.
| Model | F110-G13ST |
| Nozzle Bore | 1.3 mm |
| Standard Air Cap | 13ST |
| Spraying Pressure | 0.25 MPa |
| Spraying Distance | 200 mm |
| Air Consumption | 215 L/min |
| Paint Spraying Volume | 180 mL/min |
| Maximum Effective Pattern Width | 180 mm |
| Required Compressor Output | 1.5 kW or more |
| Weight | 293 g |
