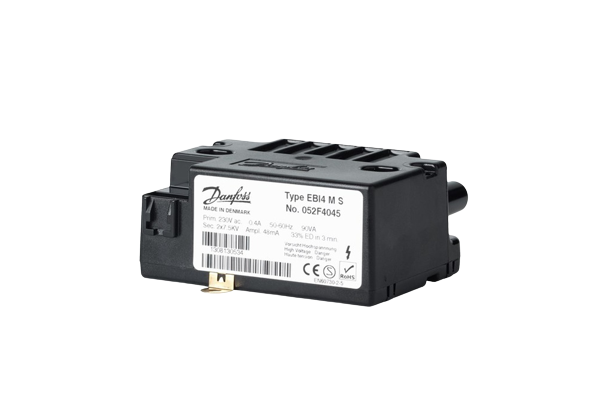

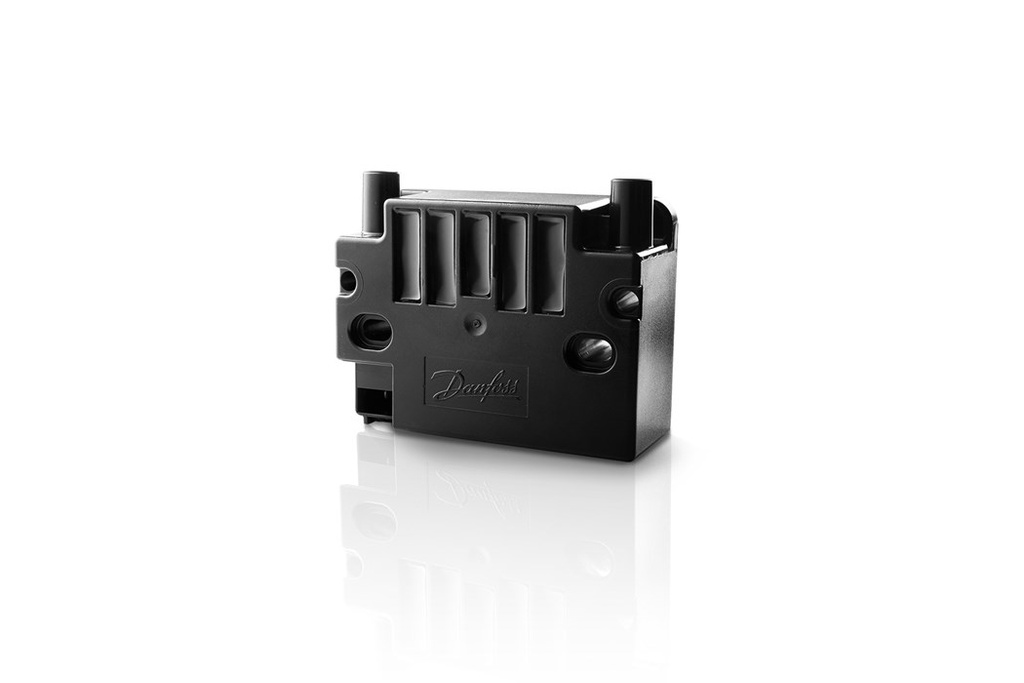

Danfoss EBI4 052F4030 Ignition Unit
Danfoss EBI4 052F4030 Ignition Unit
| Brand: Danfoss |
Danfoss
Danfoss offers a range of oil nozzles in both brass and steel for standard burner systems. We provide series of special nozzles which are adapted to operating area, media and emission to suit different markets.
We produce nozzles in accordance with EN 293 and EN 299. To ensure quality results, each nozzle is tested 100% electronically for capacity and spray pattern.
To avoid risks and to perform at its best, an oil burner needs the same attention as your car. Regular inspection and servicing are essential to ensure that it is running reliably and at optimum efficiency. Danfoss recommends changing the nozzle once a year for the benefit of the environment and operating performance.
Danfoss EBI4 is a series of high performance ignition units to increase ignition power in low temperatures.
The EBI4-series of ignition units fit a broad range of domestic burners and light commercial gas or oil burners and are setting new standards within modern ignition units for oil and gas burners, making them a very worthy successor of the very well-known Danfoss EBI series.
Complies with the RoHs and WEEE directives - EMC according to EN 55014-1 and EN 5514-2.
| Ambient Temperature Max (°C) | 60 |
| Ambient Temperature Min (°C) | -10 |
| Description | EB14 Std Ignition Unit 230V |
| Grade of Enclosure Primary | IP40 |
| Housing | Standard |
| Main Fuse Min (A) | 10 |
| Packing Format | Single Pack |
| Power Consumption (VA) | 60 |
| Primary Current (A) | 0.25 |
| Primary Frequency (Hz) | 50/60 |
| Secondary Peak Voltage (KV) | 15 |
| Storage Temperature Max (°C) | 85 |
| Storage Temperature Min (°C) | -25 |
| Supply Voltage (V) | 230 |
| Supply Voltage Max (V) | 255 |
| Supply Voltage Min (V) | 187 |
| Type | EB14 |
