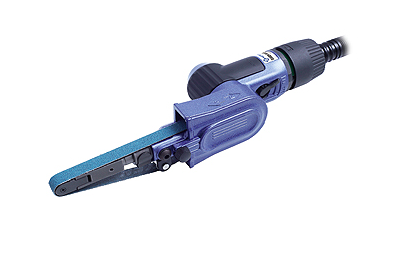

Nitto Kohki BABY BELTON BB-10B Ring Switch Type Belt Sander
Nitto Kohki BABY BELTON BB-10B Ring Switch Type Belt Sander
| Brand: Nitto Kohki |
Nitto Kohki
Based on our founding credo of “Development provides corporate insurance”, Nitto Kohki strives to offer “people-oriented” products that leverage its power- and labor-saving technology to contribute to society.
Pneumatic Belt Sander
- Ring switch type
- Belt size 10 mm (W)
- Ideal for deburring, chamfering, bead grinding, and polishing applications
- Compact and lightweight, yet powerful
- Alternative rotation direction
- Ergonomically designed for left or right hand operator convenience.
| Model | BB-10B Lever |
| Air Pressure | 0.6 MPa |
| Air Consumption | 0.2 m3/min |
| Belt Speed | 1100 m/min |
| Free Speed | 17000 min-1(rpm) |
| Belt Size | 10 mm x 330 mm |
| Body Length x Width | 246 mm x 79 mm |
| Mass | 0.5 Kg |
| Sanding | BELTON (Ring) |
| Inlet Size | Rc 1/4 |
