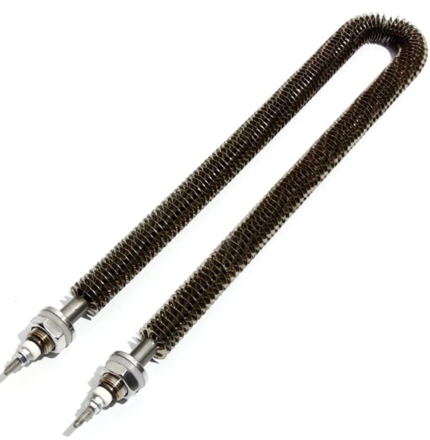

Daspass AHU 10 U Type Tubular Air Heater
Daspass AHU 10 U Type Tubular Air Heater
| Brand: Daspass |
Daspass
Daspass began its operations in the year 1968, as a manufacturer, supplier and exporter of a diverse and superior range of Heating Elements. The offered range is comprised of Industrial Heating Elements, HVAC Heaters and Flame Proof Heaters, which are widely acclaimed and asked for in the market. We engage in the utilization of high grade raw materials and modern machines, in compliance with the set industry norms and guidelines, for manufacturing this range of products. Owing to this, the offered range is known for its impeccable service life, precision and performance. In addition, the range is marked at the most reasonable rate possible.
Air heaters are manufactured out of S.S. 304/316L/321/INC sheathed tube for higher temperature upto 600 C. Each heating element is made of NiCr 80/20 resistance wires. Each element is provided with two adjustable fixing arrangements. Tube diameter varies from 8.0mm to 15mm Fins of S.S./G.I. are provided to enlarge the heat surface. Supply Voltage varies from 74V to 240V/AC/1PH/50-60Hz.
| Model | AHU 10 |
| Power | 1.0 kW |
| Voltage | 230 Volts / AC / 50 Hz / Single Phase |
| Total Length | 610 mm |
| Width | 55 mm |
