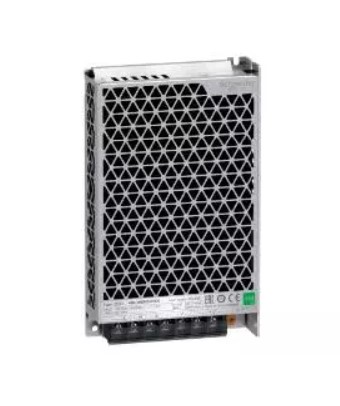

Schneider Electric ABL2REM24065K Single Phase Power Supply

This power supply belongs to Easy Modicon power supply range (formely known as Phaseo Easy). It is a regulated switch mode 24V DC power supply, model 150W, with a 100V to 240V AC output voltage, and 156W nominal power. Its output current is 6.5A. It offers better performance with cost effective. Its cooling is based on natural convection. It has a manual voltage switching. It measures 215mm wide x 115mm high x 30mm deep. This power supply is fitted for repetitive machines. ABL2 ps are certified with: CE, EAC, KC, RCM, EN62368-1(safety), EN 61000-6-2, EN 61000-4-2/3/4/5/6/8/11 (EMC), 55032 class B, RoHS. This power supply has fixing holes for panel mounting or the 4-corner bracket mounting. Better performance with cost effective. Smart design.

Range of productEasy Modicon ABL2Product or component typePower supplyPower supply typeRegulated switch modeRated power in W156 WMain Input Voltage100...120 V AC single phase
200...240 VOutput voltage24 V DCPower supply output current6.5 Aoperating positionAny positionVibration resistance4 gn (f= 10…500 Hz) conforming to EN/IEC 61131-2Name of testElectromagnetic hypersensitivity (EHS) conforming to EN 61000-6-2 level A

Input voltage limits	176...264 V 88...132 V
Network frequency	47...63 Hz
Inrush current	60 A at 100...120 V AC 60 A at 200...240 V AC
Cos phi	0.45
Efficiency	89 %
Power dissipation in W	19.3 W
Current consumption	1.5 A at 240 V
Input protection type	Integrated fuse (not interchangeable)
Output voltage limits	20.4...27.6 V
line and load regulation	+/- 1 %
Holding time	>= 35 ms at 115 V
Output protection type	Against overload, protection technology: 1.1...1.5 x In Against short-circuits, protection technology: 1.1...1.5 x In Against overvoltage, protection technology: 28.8...33.6 V Thermal
Connections - terminals	For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12
Marking	CE
Electromagnetic compatibility	Immunity to electromagnetic interference conforming to EN 55022 class B
Mounting support	DIN rail with accessory Panel mounting with accessory
Operating altitude	5000 m
Output coupling	Series
Overvoltage category	II
Meantime between failure [MTBF]	600000 h at 25 °C
Status LED	1 LED (green) output voltage
Width	159 mm
Height	97 mm
Depth	30 mm
Net weight	0.44 kg

Environment

Product certificationsEAC
IC
RoHS
KC
RCMIP degree of protectionIP20 conforming to IEC 62368-1Ambient air temperature for operation-30…70 °C (with power derating of 2 % per °C)Ambient air temperature for storage-40…85 °CRelative humidity10…95 %Overvoltage categoryClass I conforming to IEC 62368-1Pollution degree2Dielectric strength2000 V between input and ground
