SKF 6317/C3VL0241 INSOCOAT Deep Groove Ball Bearing
SKF 6317/C3VL0241 INSOCOAT Deep Groove Ball Bearing
| Brand: SKF |
SKF
AB SKF (Swedish: Svenska Kullagerfabriken, 'Swedish Ball Bearing Factory') is a Swedish bearing and seal manufacturing company founded in Gothenburg, Sweden, in 1907. The company manufactures and supplies bearings, seals, lubrication and lubrication systems, maintenance products, mechatronics products, power transmission products, condition monitoring systems and related services globally.[2]

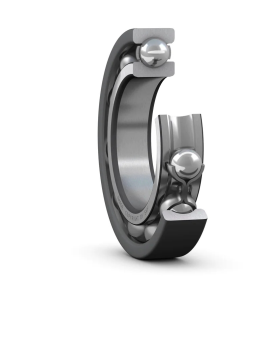

INSOCOAT single row deep groove ball bearings feature an electrically insulating coating on the outside surfaces of either the inner or outer bearing ring. This keeps stray electric currents from passing through the bearings, protecting them against electrical erosion damage and helping prevent lubricant degradation resulting from electric current discharge.
As with deep groove ball bearings generally, they are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
• Coating protects against electrical erosion damage.
• Reduced lubricant degradation resulting from electric current discharge.
• Typical benefits of single row deep groove ball bearings.
| Bore Diameter | 85 mm |
| Outside Diameter | 180 mm |
| Width | 41 mm |
| Basic Dynamic Load Rating | 140 kN |
| Basic Static Load Rating | 96.5 kN |
| Reference Speed | 8000 r/min |
| Limiting Speed | 5000 r/min |
| Number of Rows | 1 |
| Bore Type | Cylindrical |
| Cage | Sheet Metal |
| Radial Internal Clearance | C3 |
| Bearing Material | Bearing Steel |
| Coating | Insulation Coating on Outer Ring |
| Shoulder Diameter Inner Ring | 114.55 mm |
| Recess Diameter Outer Ring Shoulder | 158 mm |
