WAGO 249-116 Screwless End Stop(1set/100Nos)

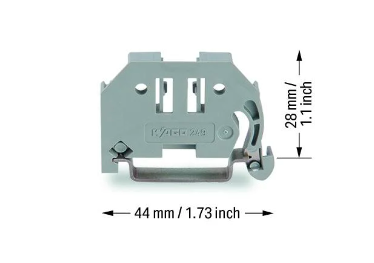

WAGO 249-116 Screwless End Stop
| Brand: WAGO |
WAGO
WAGO started its India operations in 1997 as WAGO & Controls Limited. The currently known WAGO Private Limited became a 100% subsidiary of WAGO, Germany in 2011 and has its manufacturing facility in VADODARA, Gujarat.
Innovation is at the heart of everything we do at WAGO. From our pioneering CAGE CLAMP® spring pressure connection technology to our extensive range of Interconnection, Interface and Automation solutions, our customers count on the unconditional performance and reliability of our products to ensure the safe, efficient operation of their systems every time.
Assembling the new WAGO screwless end stop is as simple and quick as snapping a WAGO rail-mount terminal block onto the rail. Tool free! A tool-free design allows rail-mount terminal blocks to be safely and economically secured against any movement on all DIN-35 rails per DIN EN 60715 (35 x 7.5 mm; 35 x 15 mm). Entirely without screws! The “secret” to a perfect fit lies in the two small clamping plates which keep the end stop in position, even if the rails are mounted vertically. Simply snap on – that's it! In addition, costs are significantly reduced when using large numbers of end stops. Additional benefit: Three marker slots for all WAGO rail-mount terminal block markers and one snap-in hole for WAGO adjustable height group marker carriers offer individual marking options.
| Main Products Function | Mounting Accessories |
| Mounting Type | DIN-35 Rail |
| Width (mm) | 6 |
| Height (mm) | 44 |
| Depth (mm) | 35 |
| Insulation material | Polyamid (PA66) |
| Flammability Class per UL94 | V0 |
| Fire Load (MJ) | 0.104 |
| Weight (g) | 3.5 |
