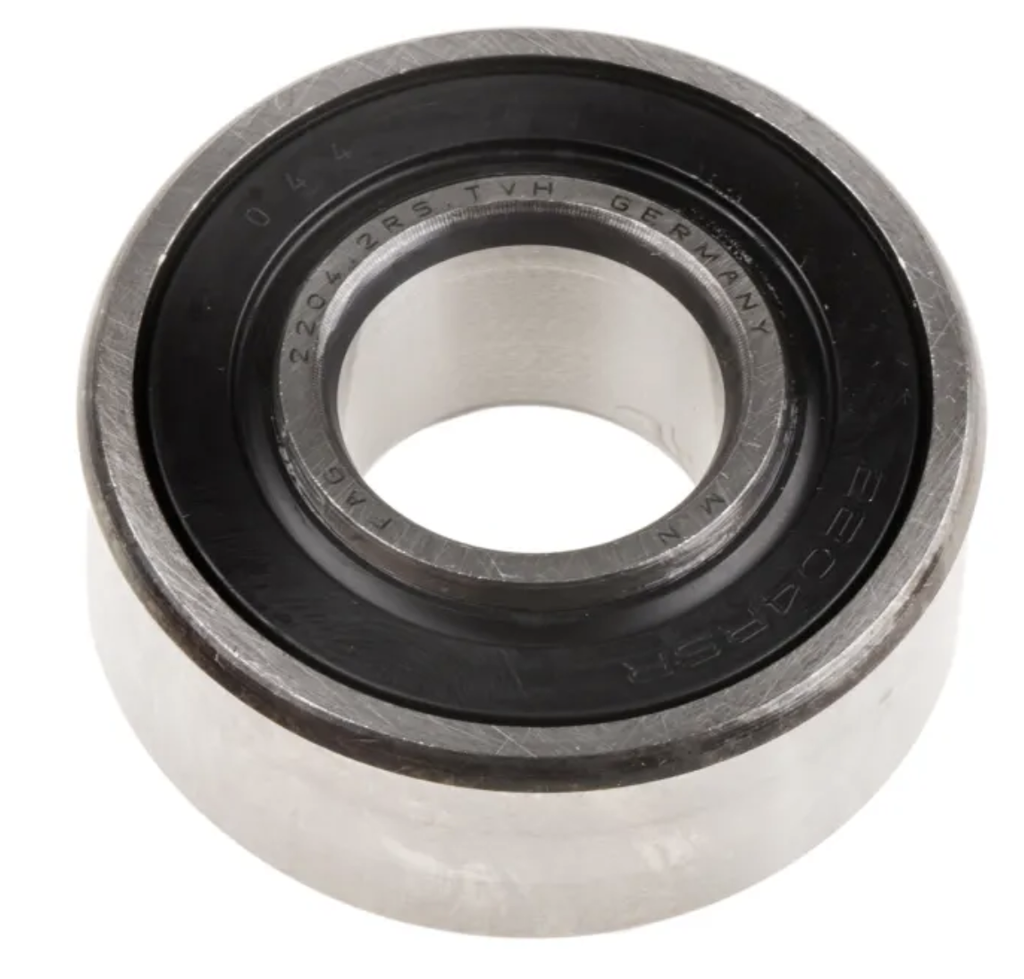

FAG 2204-2RS-TVH Bearing
FAG 2204-2RS-TVH Bearing
| Brand: FAG |
FAG
Schaeffler Technologies AG & Co. KG, also known as Schaeffler Group, is a German manufacturer of rolling element bearings for automotive, aerospace and industrial uses. It was founded in 1946 by brothers Dr. Wilhelm and Dr.-Ing. E. h. Georg Schaeffler.
FAG from Schaeffler self-aligning ball bearings are double row, self-retaining units. They comprise of solid outer rings with a concave raceway, inner rings with a cylindrical or tapered bore and ball and cage assemblies. The bearings are available in open and sealed versions.
Features and Benefits
• Lower operating costs
• Reduced maintenance due to improved lubrication
• Lower heat generation
• Less noise
• Can support both axial and radial forces
| Inside Diameter | 20 mm |
| Outside Diameter | 47 mm |
| Race Width | 18 mm |
| Ball Bearing Type | Self Aligning Ball Bearing |
| Sealing Arrangement | Both Sides Sealed |
| Material | Steel |
| Static Load Rating | 2.6kN |
| Dynamic Load Rating | 10.1kN |
| Bore Type | Parallel |
| Race Type | Plain |
FAG 2204=2RS-TVH.pdf
Download
