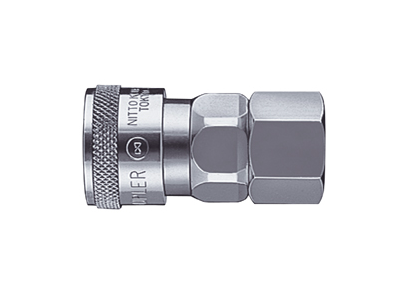

Nitto Kohki 20SF-STEEL FKM 1/4" Socket Hi Coupler
Nitto Kohki 20SF-STEEL FKM 1/4" Socket Hi Coupler
| Brand: Nitto Kohki |
Nitto Kohki
Based on our founding credo of “Development provides corporate insurance”, Nitto Kohki strives to offer “people-oriented” products that leverage its power- and labor-saving technology to contribute to society.
Universal purpose couplings for airlines
From factory airline to pneumatic tool connection, available in various body materials, sizes and end configurations. Excellent durability.
An excellent general purpose coupling for connecting factory air supply to pneumatic tools.
Steel coupling is suitable for air. Brass or stainless steel is suitable for water. Note that fluid will come out from the plug when disconnected.
Critical structural parts of steel models are heat-treated for increased strength giving greater durability and resistance to wear.
Available in various body materials, sizes and end configurations applicable to a wide range of applications
| Series Name | Hi Cupla steel 10/17/20/30/40/60 Type |
| Shape | Socket (Female) |
| Valve Structure | With Valve |
| Working Pressure | 1.5 MPa |
| Size of End Configuration | 1/4 |
| Applicable Fluid | Air |
| Body Material | Steel |
| Seal Material | Fluoro Rubber |
| End Configuration | Female Thread |
| Working Temperature | -20 ～ 180 ℃ |
