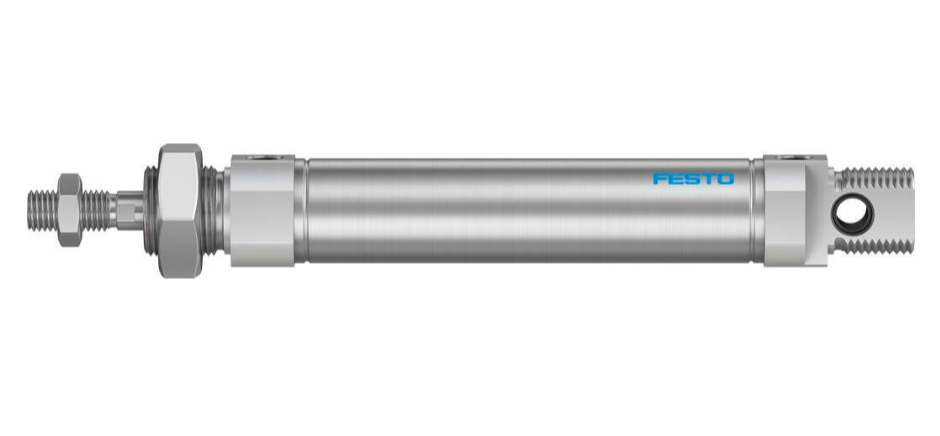

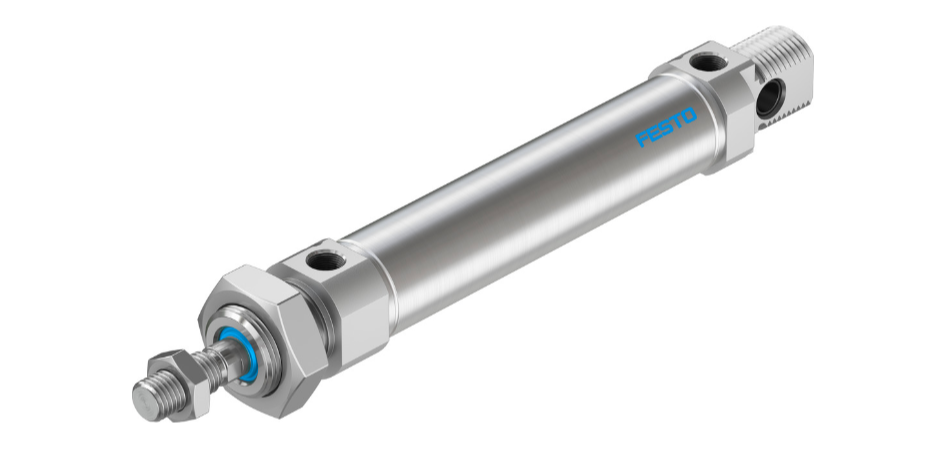

Festo 19247 / DSNU-25-80-PPV-A ISO Cylinder
Festo 19247 / DSNU-25-80-PPV-A ISO Cylinder
| Brand: Festo |
Festo
Festo is a German automation company based in Esslingen am Neckar, Germany. Festo produces and sells pneumatic and electrical control systems and drive technology for factories and process automation.
Stainless steel piston rod
• Good running performance and long service life.
• Piston rod with male and female thread.
• Extensive range of accessories makes it possible to install the cylinder virtually anywhere.
Piston size- 8 ... 63 mm
• Cylinder barrel made of stainless steel
• Bearing and end caps made of wrought aluminium alloy.
| Model | 19247 / DSNU-25-80-PPV-A |
| Stroke | 80 mm |
| Piston diameter | 25 mm |
| Piston rod thread | M10x1.25 |
| Operating pressure | 0.1 MPa ... 1 MPa |
| Design | Piston Piston rod Cylinder barrel |
| Position Detection | Via Proximity Switch |
| Pneumatic connection | G 1/8 |
| Material piston rod | High-alloy stainless steel |
| Ambient temperature | -20 °C ... 80 °C |
