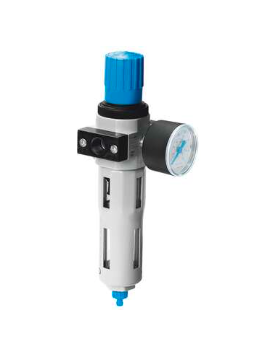

Festo 159635 LFR-1/4-D-MINI-A Filter Regulator
Festo 159635 LFR-1/4-D-MINI-A Filter Regulator
| Brand: Festo |
Festo
Festo is a German automation company based in Esslingen am Neckar, Germany. Festo produces and sells pneumatic and electrical control systems and drive technology for factories and process automation.
It is used in CS erotherm Batch Hopper, Automatic Cream Filling Machine, Lifter and Mould Stopper.
- Size- Mini
- Series- D
- Actuator lock- Rotary knob with detent
- Mounting position- Vertical +/-5°
- Grade of filtration- 40 µm
- Condensate drain- Fully automatic
- Design- Filter regulator with pressure gauge
- Max. condensate volume- 22 ml
- Bowl guard- Metal bowl guard
- Symbol- 00991583
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)- With pressure gauge
- Operating pressure- 2 bar ... 12 bar
- Pressure regulation range- 0.5 bar ... 12 bar
- Max. pressure hysteresis- 0.2 bar
- Standard nominal flow rate- 1400 l/min
- Operating medium- Compressed air to ISO 8573-1:2010 [7:9:-] Inert gases
- Note on operating and pilot medium- Lubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC2 - Moderate corrosion stress
- LABS (PWIS) conformity- VDMA24364-B1/B2-L
- Storage temperature- -10 °C ... 60 °C
- Air purity class at output- Compressed air to ISO 8573-1:2010 [7:8:4] Inert gases
- Media temperature- 5 °C ... 60 °C
- Ambient temperature- 5 °C ... 60 °C
- Product weight- 460 g
- Type of mounting- Either: In-line installation With accessories
- Pneumatic connection, port 1- G1/4
- Pneumatic connection, port 2- G1/4
- Note on materials- RoHS-compliant
- Material housing- Die-cast zinc
- Material bowl- PC
